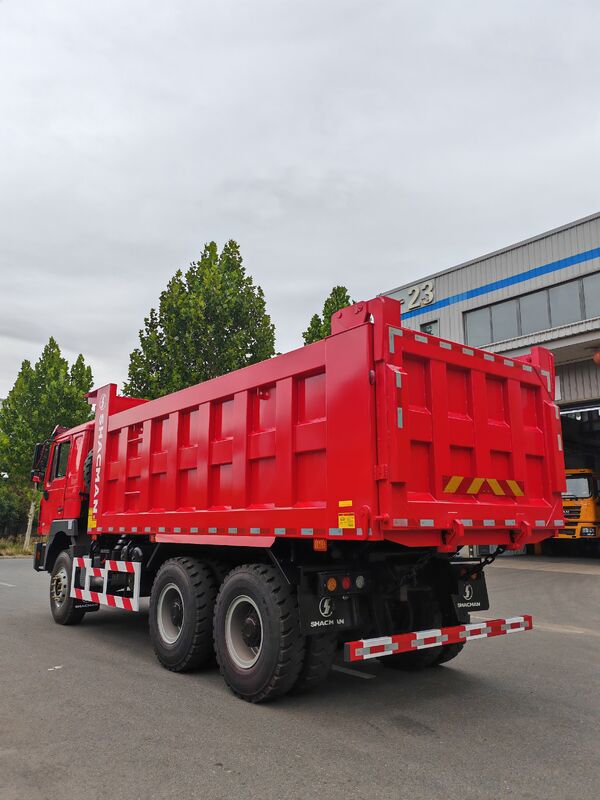

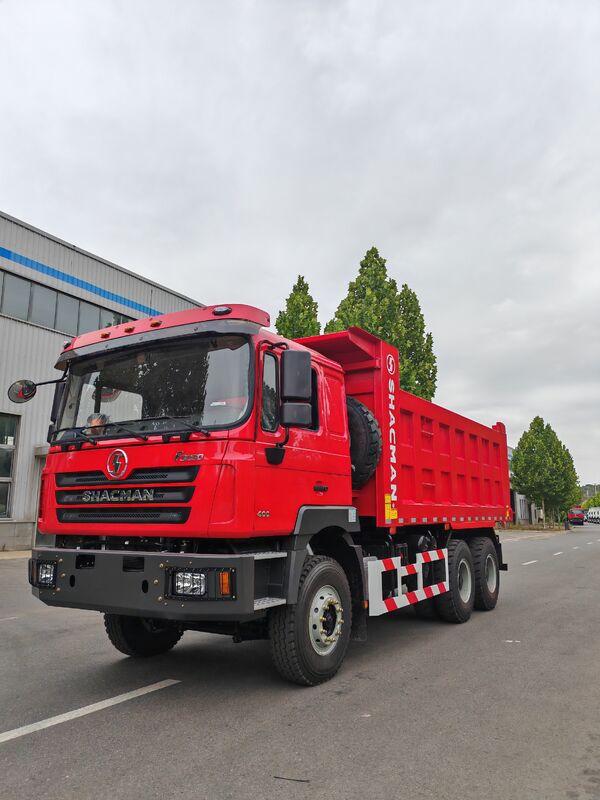

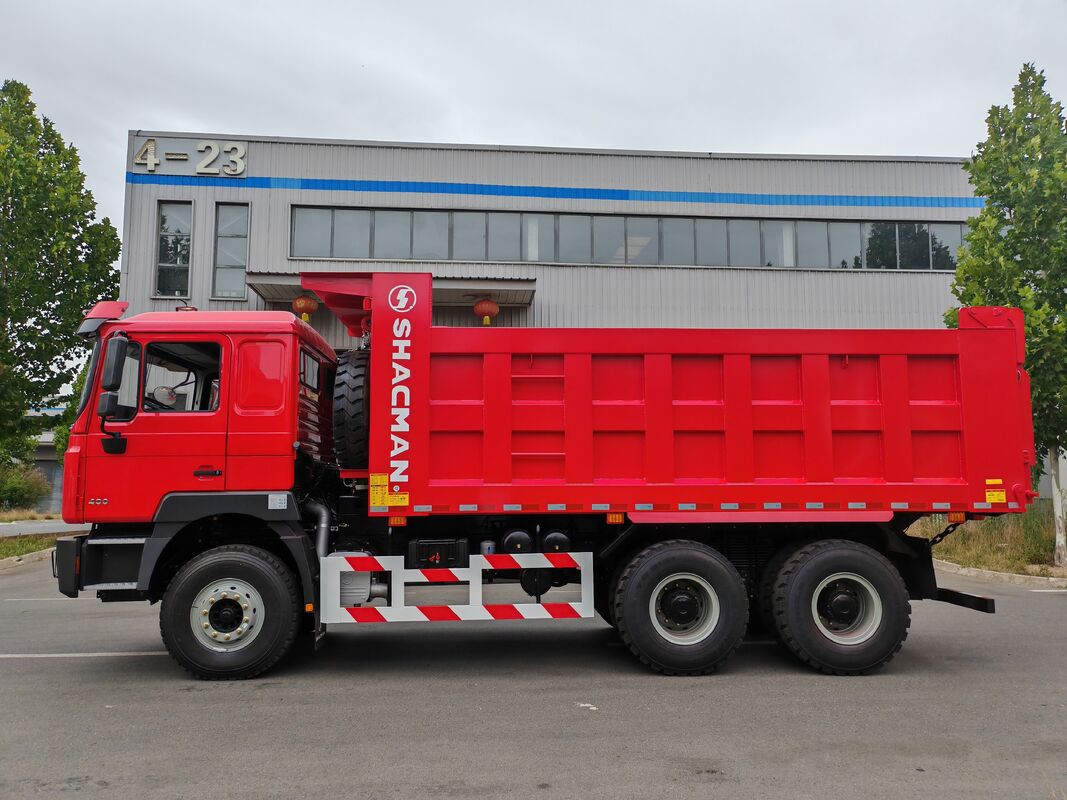

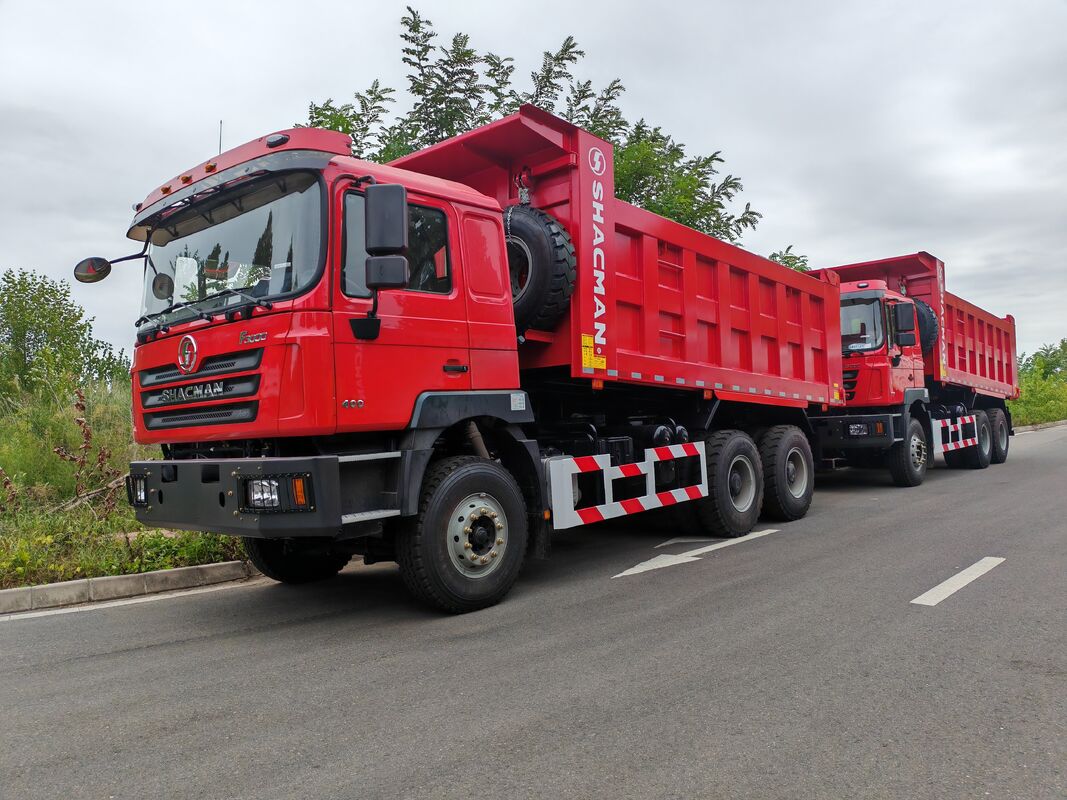

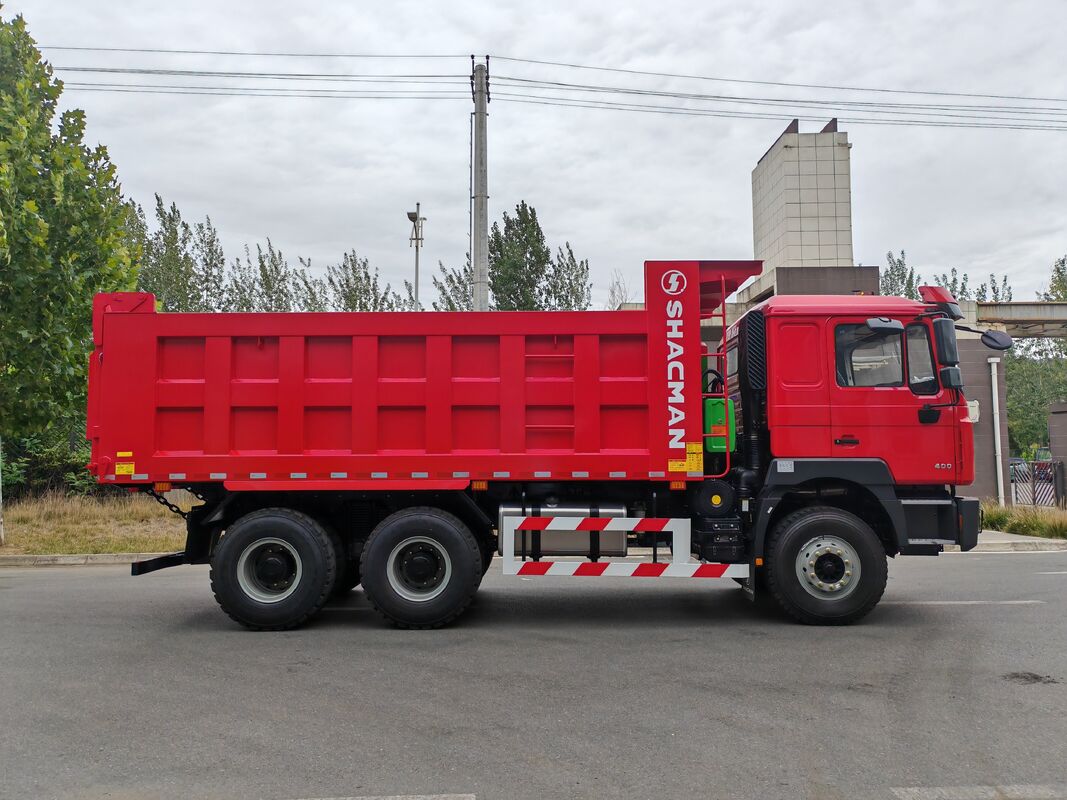

SHACMAN F3000 6X4 Heavy Duty Dump Truck with 9.5T /2*16 T Axle 300L Fuel Tank and 3775+1400 mm Wheelbase

SHACMAN F3000 6X4 Heavy Duty Dump Truck with 9.5T /2*16 T Axle 300L Fuel Tank and 3775+1400 mm Wheelbase

9.5T /2*16 T Axle Heavy Duty Dump Truck

300L Fuel Tank Dump Truck

3775+1400 mm Wheelbase Tipper Truck

Luogo di origine:

Shaanxi, Xian

Marca:

SHACMAN

Certificazione:

ISO 9001/CCC

Numero di modello:

F3000

Contattaci
Chiedi un preventivo
SHACMAN F3000 6X4 Heavy Duty Dump Truck with 9.5T /2*16 T Axle 300L Fuel Tank and 3775+1400 mm Wheelbase SHACMAN F3000 6X4 Heavy Duty Dump Truck with 9.5T /2*16 T Axle 300L Fuel Tank and 3775+1400 mm Wheelbase SHACMAN F3000 6X4 Heavy Duty Dump Truck with 9.5T /2*16 T Axle 300L Fuel Tank and 3775+1400 mm Wheelbase SHACMAN F3000 6X4 Heavy Duty Dump Truck with 9.5T /2*16 T Axle 300L Fuel Tank and 3775+1400 mm Wheelbase SHACMAN F3000 6X4 Heavy Duty Dump Truck with 9.5T /2*16 T Axle 300L Fuel Tank and 3775+1400 mm Wheelbase SHACMAN F3000 6X4 Heavy Duty Dump Truck with 9.5T /2*16 T Axle 300L Fuel Tank and 3775+1400 mm Wheelbase SHACMAN F3000 6X4 Heavy Duty Dump Truck with 9.5T /2*16 T Axle 300L Fuel Tank and 3775+1400 mm Wheelbase
Dettagli del prodotto
MODELLO:
SX3255DT364-Heavy duty
MOTORE:
WP10.380E22
Trasmissione:
12JSD200T-B+QH50
Asse:
Doppio fase di 9.5T /2 *16 T, velocità ratio-5.92
Base ruota:
3775+1400 millimetri
Pneumatico:
12.00R20
Serbatoio del carburante:
300L
Frizione:
φ430 Clutch a molla diaframma
Ingresso aereo:
Filtro d'aria ordinario
Telaio:
850×300 ((8+7)
sospensione:
Piastra multi-strato anteriore /posteriore Spring 4 piastre principali + bulloni a forma di U
Cabina:
di cima piana Medium lunghezza
Colore:
Verde rosso/verde al neon della montagna/blu/brandy blu Aurora White /Klein della luna e della stell
Evidenziare:

9.5T /2*16 T Axle Heavy Duty Dump Truck

,

300L Fuel Tank Dump Truck

,

3775+1400 mm Wheelbase Tipper Truck

Termini di trasporto & di pagamento
Quantità di ordine minimo
1
Prezzo
negotiable
Imballaggi particolari
Confezione nuda, con cera prima della spedizione.
Tempi di consegna
45 giorni lavorativi
Termini di pagamento
T/T, L/C
Capacità di alimentazione
5000 unità/mese
Prodotti correlati
Contattaci
Contatto ora
Descrizione di prodotto
SHACMAN F3000 6X4 Heavy Duty Dump Truck

Model SX3255DT364 with 9.5T /2*16 T Axle, 300L Fuel Tank, and Medium-length Flat Top Cabin

Product Overview

The SHACMAN F3000 Dump Truck 6x4 380Hp Euro II features a WEICHAI diesel engine, delivering robust performance for heavy-duty applications.

Detailed Specifications
Model: SX3255DT364-heavy duty
Drive type: 6x4
Engine Brand: WEICHAI
Engine Model: WP10.380E22
Engine Power: 279kw / 380Hp
Gear box Brand: FAST
Gear box Model: 12JSD200T-B+QH50
Technical Parameters
Parameter Specification
Model SX3255DT364
Drive type 6x4
Gross Vehicle Weight ≤50
Wheelbase (mm) 3775+1400
Maximum speed (km/h) 45～60/80
Ground clearance >314
Maximum torque (N.M)/rpm 1600 N*M
Displacement (L) 9.726 L
Emission standard Euro II
Key Components
  • Gear box: FAST 12JSD200T-B+QH50
  • Clutch: φ430 Diaphragm spring clutch
  • Cooling: Domestic heat sink
  • Air inlet: Ordinary air filter
  • Brakes: Drum brake with double circuit air brake system
  • Steering: ZF8098 technology, circulating ball steering machine
  • Chassis: Parallel trapezoidal frame with variable section (850*300 (8+7))
  • Suspension: Multi-layered leaf springs (4 Main springs+4 U Bolts front and rear)
  • Axles: HANDE 9.5T front axle and 16T MAN Double Reduction Drive axle
  • Tires: 12.00R20
  • Fuel tank: 300L Aluminum tank
  • Electrics: 24V system with 165Ah Maintenance-free battery
Cab Features

SHACMAN F3000 Medium-length flat cab includes:

  • Hydraulic main seat
  • Four-point hydraulic suspension cab
  • Ordinary rearview mirror
  • Electronically controlled automatic constant temperature air conditioner
  • Electric window shaker
  • 165Ah maintenance-free Battery
  • SHACMAN logo and full English branding
Product Advantages
  • Ergonomic design focused on driver comfort and convenience
  • Spacious, driver-centric cabin environment reduces fatigue on long hauls
  • Adjustable seats and easy-to-reach controls enhance operational efficiency
  • Excellent visibility for improved safety
Company Information
Who are we?

We are based in Shaanxi, China, established in 2015. Our primary markets include Africa (70%), Southeast Asia (10%), Central America (10%), South America (4%), Mid East (2%), Eastern Asia (2%), and South Asia (2%). Our team consists of 11-50 professionals.

How can we guarantee quality?

We implement strict quality control measures including pre-production samples and final inspection before shipment.

What can you buy from us?

Our product range includes dump trucks, track trucks, lorry trucks, van trucks, and mixer trucks.

What services can we provide?
Delivery Terms: FOB, CFR, CIF, DAF, EXW, CIP, DDU
Payment Currency: USD, EUR, CNY
Payment Type: T/T, L/C, D/P D/A
Languages: English, French, Russian, Spanish
