Casa > prodotti > Autocarro con cassone ribaltabile pesante >

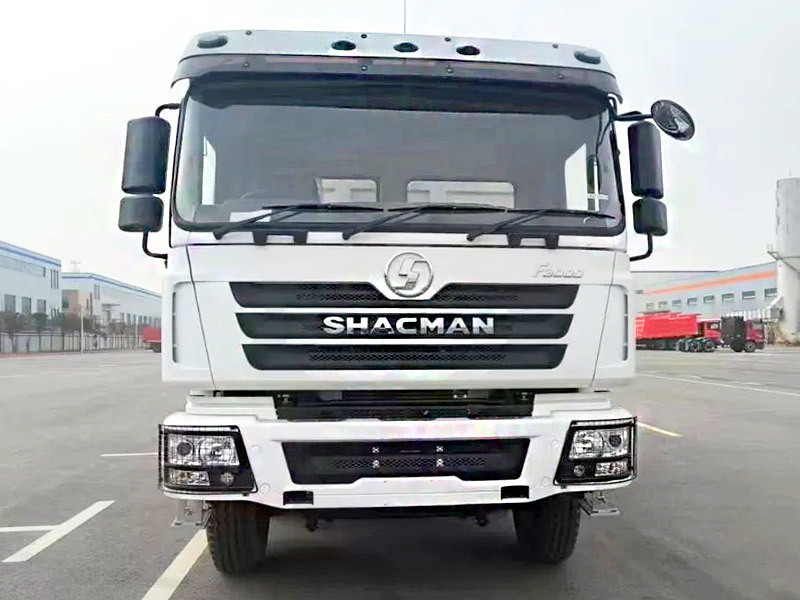

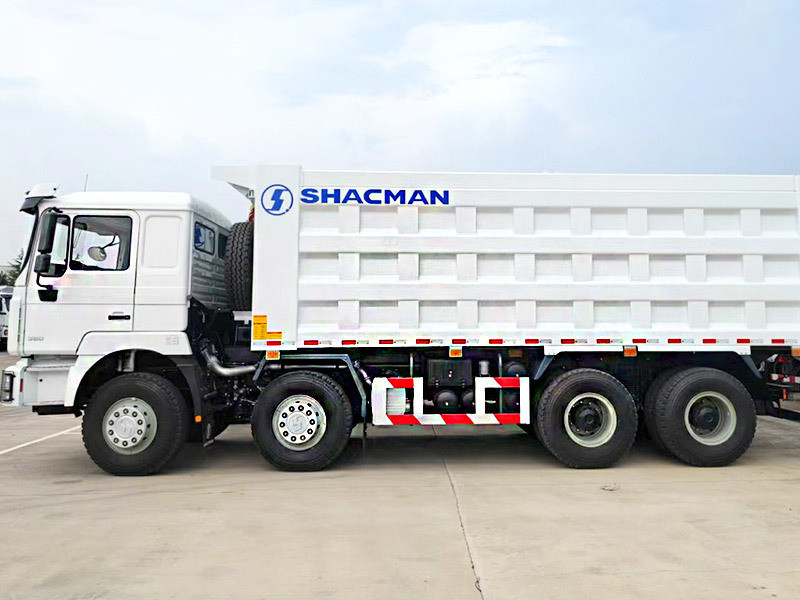

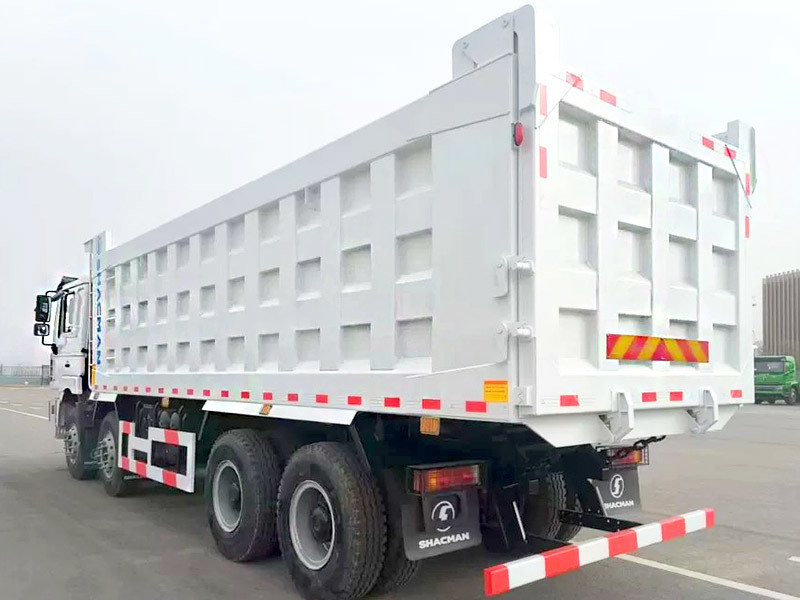

SHACMAN F3000 8x4 430Hp EuroV Yellow Domestic Front Lift Tipper Truck with 300L Fuel Tank and 12.00R20 Tires

SHACMAN F3000 8x4 430Hp EuroV Yellow Domestic Front Lift Tipper Truck with 300L Fuel Tank and 12.00R20 Tires

300L Fuel Tank Tipper Truck

12.00R20 Tires Dump Truck

Domestic Heavy Dump Truck

Luogo di origine:

Shaanxi, Xian

Marca:

SHACMAN

Certificazione:

ISO 9001/CCC

Numero di modello:

F3000

Contattaci
Chiedi un preventivo
SHACMAN F3000 8x4 430Hp EuroV Yellow Domestic Front Lift Tipper Truck with 300L Fuel Tank and 12.00R20 Tires SHACMAN F3000 8x4 430Hp EuroV Yellow Domestic Front Lift Tipper Truck with 300L Fuel Tank and 12.00R20 Tires SHACMAN F3000 8x4 430Hp EuroV Yellow Domestic Front Lift Tipper Truck with 300L Fuel Tank and 12.00R20 Tires SHACMAN F3000 8x4 430Hp EuroV Yellow Domestic Front Lift Tipper Truck with 300L Fuel Tank and 12.00R20 Tires
Dettagli del prodotto
Modle:
SX3318DV366
Motore:
WP12.430E50-WEICHAI
Trasmissione:
12JSD200T-B+QH50-FAST
Asse:
9.5T/2*16 T Doppio stadio, rapporto di velocità-4.769
Base ruota:
1800+3575+1400 millimetri
Pneumatico:
12.00R20 (10+1)
Serbatoio del carburante:
300L
Frizione:
φ430 Clutch a molla diaframma
Ingresso aereo:
Filtro d'aria ordinario
Telaio:
850×300 ((8+7)
sospensione:
Piastra multi-strato anteriore /posteriore Spring 4 piastre principali + bulloni a forma di U
Cabina:
di cima piana Medium lunghezza
Colore:
Verde rosso/verde al neon della montagna/blu/brandy blu Aurora White /Klein della luna e della stell
Evidenziare:

300L Fuel Tank Tipper Truck

,

12.00R20 Tires Dump Truck

,

Domestic Heavy Dump Truck

Termini di trasporto & di pagamento
Quantità di ordine minimo
1
Prezzo
negotiable
Imballaggi particolari
Confezione nuda, con cera prima della spedizione.
Tempi di consegna
45 giorni lavorativi
Termini di pagamento
T/t, l/c
Capacità di alimentazione
1000 unità/mese
Prodotti correlati
Contattaci
Contatto ora
Descrizione di prodotto
SHACMAN F3000 Dump Truck 8x4 430Hp EuroV Yellow Domestic Front Lift Tipper
Product Overview

The SHACMAN F3000 Dump Truck is a robust 8x4 tipper designed for heavy-duty material transportation. Featuring a 430HP EuroV compliant engine and domestic front lift mechanism, this truck combines power with environmental responsibility.

Key Specifications
Model: SX3318DV366
Drive Type: 8x4
Engine: WEICHAI WP12.430E50
Power: 316kw / 430Hp
Transmission: FAST 12JSD200T-B+QH50
Emission Standard: Euro V
Technical Specifications
Category Specification
Weight Gross Vehicle Weight ≤70
Dimensions Wheelbase: 1800+3575+1400 mm
Performance Maximum speed: 40～55/75 km/h
Ground clearance: >314 mm
Engine WEICHAI WP12.430E50
316kw / 430Hp
2050 N*M maximum torque
11.596 L displacement
Drivetrain FAST 12JSD200T-B+QH50 gearbox
φ430 Diaphragm spring clutch
Braking System Drum brakes
Double circuit air brake (Service)
Rear wheel spring brake (Park)
WEVB engine exhaust brake (Auxiliary)
Chassis & Suspension Parallel trapezoidal frame (850×300(8+7) mm)
Multi-layered leaf springs (Front: 4 Main+4 U Bolts, Rear: 4 Main+4 U Bolts)
Axles HANDE 9.5T front axle (MAN technology)
16T MAN Double Reduction Drive rear axle (4.769 ratio)
Other Components 12.00R20 tires
300L Aluminum fuel tank
24V electrical system with 165Ah battery
Cab Features F3000 Medium-length flat cab
Hydraulic main seat
Four-point hydraulic suspension
Electronically controlled automatic AC
Electric windows
Key Advantages
  • Robust Construction: Heavy-duty chassis and suspension system provide excellent load-bearing capacity and stability for safe transportation on rough terrain.
  • Eco-Friendly: Complies with strict Euro V emission standards, significantly reducing nitrogen oxides (NOx) and particulate matter (PM) emissions.
Company Information
About Us

Based in Shaanxi, China since 2015, we specialize in manufacturing and exporting heavy-duty trucks to global markets including Africa (70%), Southeast Asia (10%), and the Americas (14%). Our team of 11-50 professionals ensures quality products and service.

Quality Assurance

We implement strict quality control measures including pre-production sampling to validate design, functionality, and quality before mass production.

Product Range

Our product portfolio includes Dump trucks, Track trucks, Lorry trucks, Van trucks, and Mixer trucks.

Services Offered

We accept various delivery terms (FOB, CFR, CIF, EXW, CIP, DDU) and payment methods (T/T, L/C, D/P D/A) in multiple currencies (USD, EUR, CNY). Our team communicates in English and French.
