SHACMAN F3000 6x4 Water Tank Truck with 300L Fuel Tank and 7.5T/2*13 Double Stage Axle

SHACMAN F3000 6x4 Water Tank Truck with 300L Fuel Tank and 7.5T/2*13 Double Stage Axle

300L Fuel Tank Water Truck

7.5T/2*13 Double Stage Axle Tanker Truck

4375+1400mm Wheelbase Water Tank Truck

Luogo di origine:

Shaanxi, Xian

Marca:

SHACMAN

Certificazione:

ISO9001/CCC

Numero di modello:

F3000

Contattaci
Chiedi un preventivo
SHACMAN F3000 6x4 Water Tank Truck with 300L Fuel Tank and 7.5T/2*13 Double Stage Axle SHACMAN F3000 6x4 Water Tank Truck with 300L Fuel Tank and 7.5T/2*13 Double Stage Axle SHACMAN F3000 6x4 Water Tank Truck with 300L Fuel Tank and 7.5T/2*13 Double Stage Axle SHACMAN F3000 6x4 Water Tank Truck with 300L Fuel Tank and 7.5T/2*13 Double Stage Axle SHACMAN F3000 6x4 Water Tank Truck with 300L Fuel Tank and 7.5T/2*13 Double Stage Axle
Dettagli del prodotto
Modle:
SX5255GSSDN434
Motore:
WP10.300E22
Trasmissione:
RTD-11509C con l'estrattore della flangia QH50
Asse:
asse della fase del doppio 7.5T/2*13, asse speed-5.262
Base ruota:
4375+1400mm
Pneumatico:
12.00R20
Serbatoio del carburante:
300L
Frizione:
φ430 Clutch a molla diaframma
Ingresso aereo:
Filtro d'aria ordinario
Telaio:
850×300 (8+5)
sospensione:
Piatti principali della molla di piatto di /rear della parte anteriore 2 a più strati + 2 bulloni a
Cabina:
di cima piana Medium lunghezza
Colore:
Verde al neon montagna/rosso/blu blu stellato/Borgogna di Aurora White /Klein
Evidenziare:

300L Fuel Tank Water Truck

,

7.5T/2*13 Double Stage Axle Tanker Truck

,

4375+1400mm Wheelbase Water Tank Truck

Termini di trasporto & di pagamento
Quantità di ordine minimo
1
Prezzo
negotiable
Imballaggi particolari
Confezione nuda, con cera prima della spedizione.
Tempi di consegna
45 giorni lavorativi
Termini di pagamento
T/t, l/c
Capacità di alimentazione
5000units
Prodotti correlati
Contattaci
Contatto ora
Descrizione di prodotto
SHACMAN F3000 Water Tank Truck 6x4 300 EuroII White
Product Specifications
Model: SX5255GSSDN434
Drive type: 6x4
Weight: Gross Vehicle Weight ≤50
Water Tank Truck Parameters
Model SX5255GSSDN434
Drive type 6x4
Weight Gross Vehicle Weight ≤50
Dimensions Wheelbase/(mm) 4375+1400
Performance Maximum speed/(km/h) 50～70/90
Ground clearance >314
Engine Brand WEICHAI
Engine Model WP10.300E22
Power/(kw/HP) 220w / 300Hp
Maximum torque / (N.M)/rpm 1240 N*M
Displacement/(L) 9.726 L
Emission standard Euro/ II
Gear box Brand FAST
Gear box Model RTD-11509C with QH50 flange extractor
Clutch Type φ430 Diaphragm spring clutch
Cooling Type Domestic heat sink
Air inlet Type Ordinary air filter
Brakes Type Drum brake
Service brake Double circuit air brake
Park brake Rear wheel spring brake
Auxiliary brake WEVB engine exhaust brake
Steering Type ZF8098 technology, circulating ball steering machine
Chassis Type Parallel trapezoidal frame with variable section
Dimensions/(mm) 850×300(8+5)
Key Features
  • 300 horsepower (Hp) Euro II compliant engine for reduced environmental impact
  • Ergonomic cab design with driver comfort features including hydraulic main seat and four-point hydraulic suspension
  • Electronically controlled automatic constant temperature air conditioner
  • Electric window controls and modern instrumentation
  • 300L aluminum fuel tank capacity
  • 24V electrical system with 165Ah maintenance-free battery

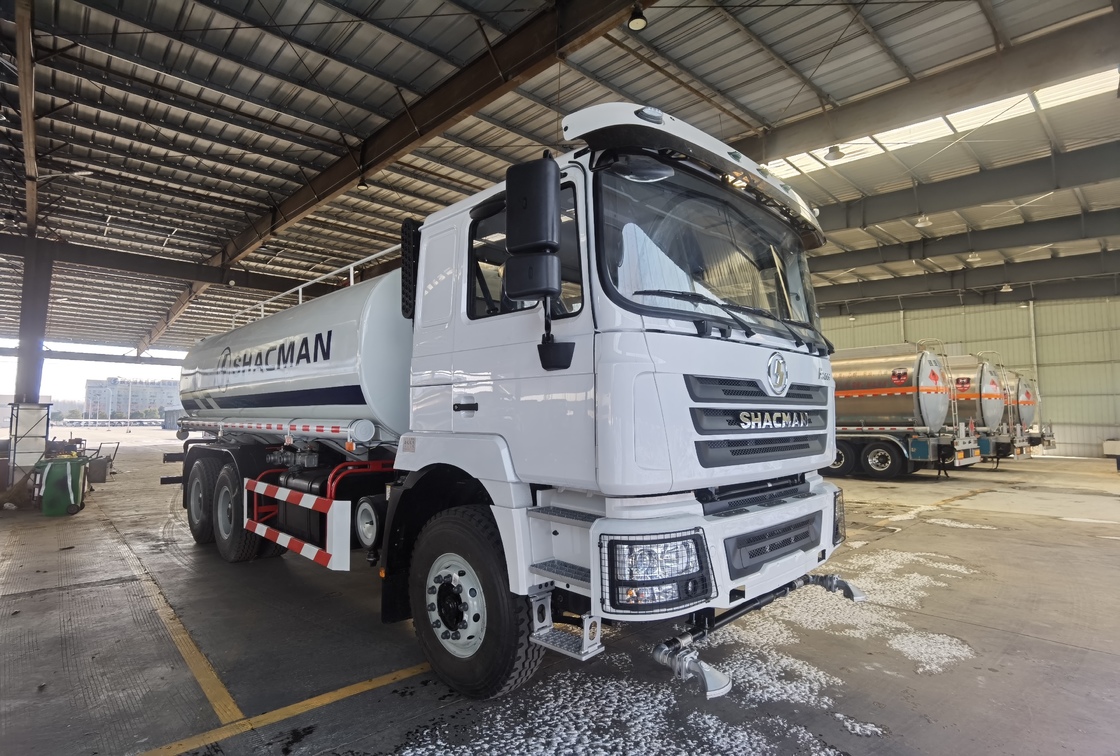

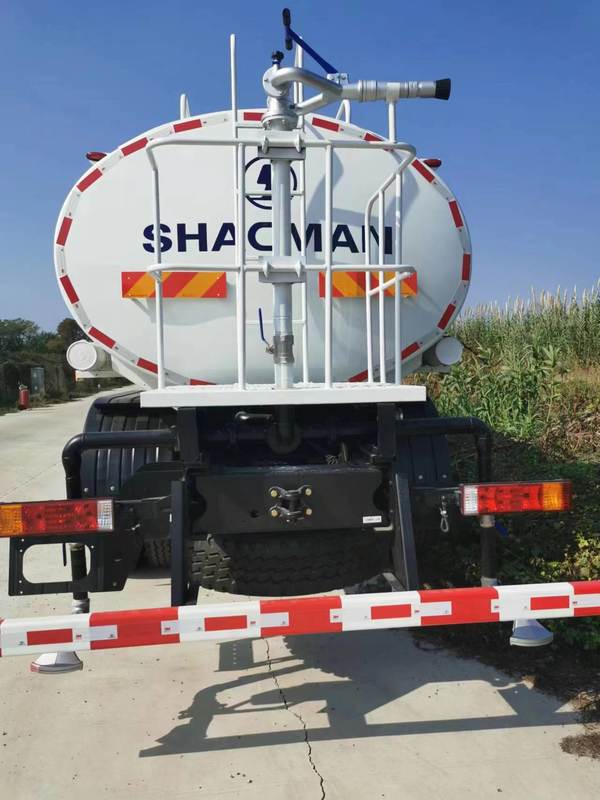

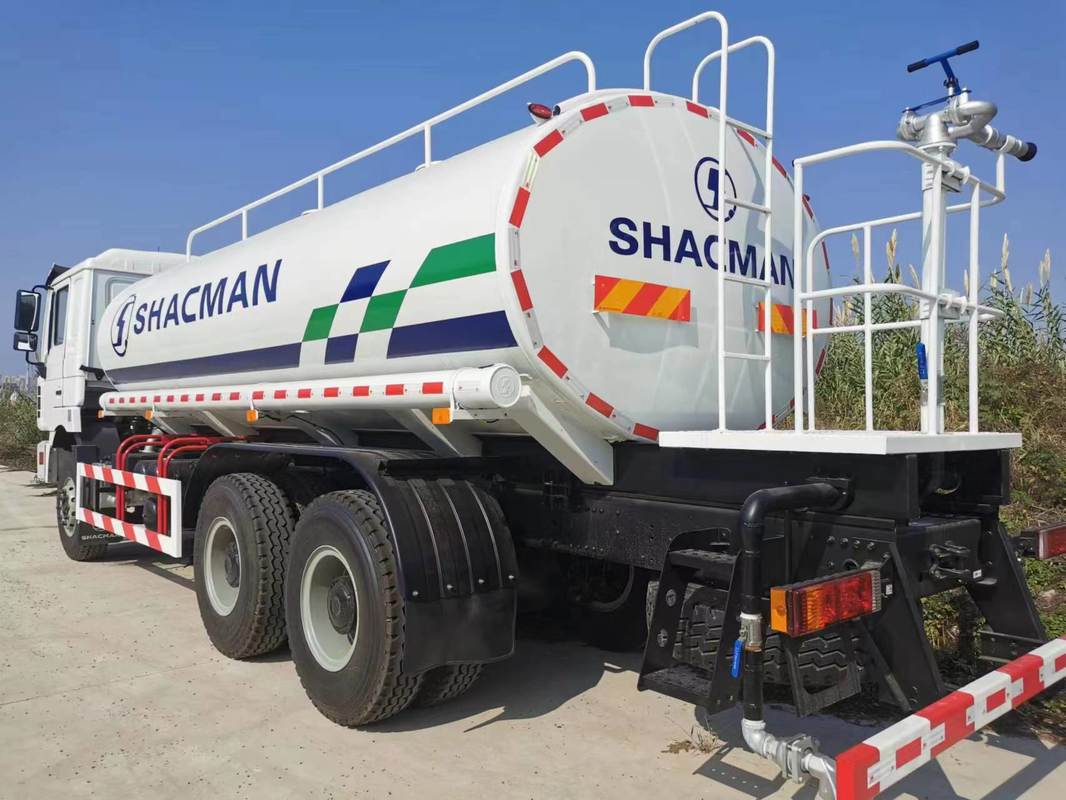

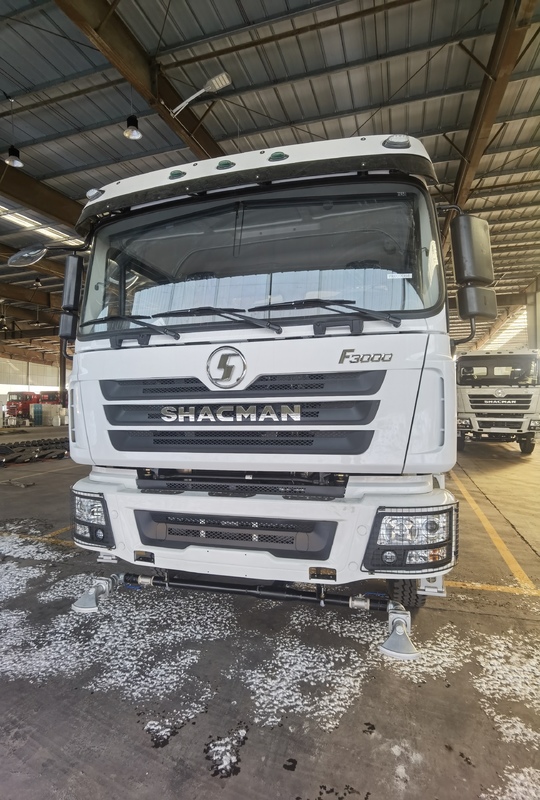

Product Image
SHACMAN F3000 6x4 Water Tank Truck with 300L Fuel Tank and 7.5T/2*13 Double Stage Axle 0
Company Information
Who are we?
We are based in Shaanxi, China, established in 2015. Our primary markets include Africa (70%), Southeast Asia (10%), Central America (10%), South America (4%), Mid East (2%), Eastern Asia (2%), and South Asia (2%). Our team consists of 11-50 professionals.
How can we guarantee quality?
We implement strict quality control measures including pre-production samples and final inspection before shipment.
What can you buy from us?
Our product range includes dump trucks, track trucks, lorry trucks, van trucks, and mixer trucks.
What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU
Accepted Payment Currency: USD, EUR, CNY
Accepted Payment Type: T/T, L/C, D/P D/A
Languages Spoken: English, French
