SHACMAN F3000 Dump Truck 8x4 380Hp EuroII Yellow domestic Front lift Tipper

SHACMAN F3000 Dump Truck 8x4 380Hp EuroII Yellow domestic Front lift Tipper

SHACMAN F3000 dump truck 8x4

heavy dump truck with warranty

380Hp EuroII front lift tipper

Luogo di origine:

Shaanxi, Xian

Marca:

SHACMAN

Certificazione:

ISO 9001/CCC

Numero di modello:

F3000

Contattaci
Chiedi un preventivo
Dettagli del prodotto
Modle:
SHACMAN SX3318DT366
Motore:
WEICHAI WP10.380E22
Trasmissione:
10JSD180+QH50 VELOCE
Asse:
Doppio fase dell'UOMO 2* 9.5T /2 *16 T, velocità ratio-5.92
Base ruota:
1800+3575+1400 millimetri
Pneumatico:
12.00R20
Serbatoio del carburante:
300L
Frizione:
φ430 Clutch a molla diaframma
Ingresso aereo:
Filtro d'aria ordinario
Telaio:
850×300 ((8+7)
Sospensione:
Piastra multi-strato anteriore /posteriore Spring 4 piastre principali + bulloni a forma di U
Cabina:
di cima piana Medium lunghezza
Colore:
Verde rosso/verde al neon della montagna/blu/brandy blu Aurora White /Klein della luna e della stell
Evidenziare:

SHACMAN F3000 dump truck 8x4

,

heavy dump truck with warranty

,

380Hp EuroII front lift tipper

Termini di trasporto & di pagamento
Quantità di ordine minimo
1
Prezzo
negotiable
Imballaggi particolari
Confezione nuda, con cera prima della spedizione.
Tempi di consegna
45 giorni lavorativi
Termini di pagamento
T/t, l/c
Capacità di alimentazione
5000 unità/mese
Prodotti correlati
Contattaci
Contatto ora
Descrizione di prodotto

SHACMAN F3000 Dump Truck 8x4 380Hp EuroII Yellow



Detailed Product Description

Model:SX3315DT366
Drive type:8x4
Engine Brand: WEICHAI
Engine Model:WP10.380E22
Engine Power/(kw/HP): 279kw / 380Hp
Gear box Brand: FAST
Gear box Model: 10JSD180+QH50



Dump Truck Parameters

Model SX3315DT366
Drive type 8x4
Weight Gross Vehicle Weight ≤90
Dimensions Wheelbase/(mm) 1800+3575+1400
Performance Maximum speed/(km/h) 45~60/80
Ground clearance >314
Engine Brand WEICHAI
Model WP10.380E22
Power/(kw/HP) 279kw / 380Hp
Maximum torque / (N.M)/rpm 1600 N·M
Displacement/(L) 9.726 L
Emission standard Euro II
Gear box Brand FAST
Model 10JSD180+QH50
Clutch Type φ430 Diaphragm spring clutch
Cooling Type Domestic heat sink
Air inlet Type Ordinary air filter
Brakes Type Drum brake
Service brake Double circuit air brake
Park brake Rear wheel spring brake
Auxiliary brake WEVB engine exhaust brake
Steering Type ZF8098 technology, circulating ball steering machine
Chassis Type Parallel trapezoidal frame with variable section
Dimensions/(mm) 850×320 (8+7+8)
Suspension Front Multi-layered leaf springs with 4 Main springs+4 U Bolts
Rear Multi-layered leaf springs with 4 Main springs+4 U Bolts
Axles Brand HANDE
Front axle 9.5T front axle MAN technology
Rear axle 16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.262
Tires Type 12.00R20
Fuel tank Tank capacity/(L) 300L Aluminum tank
Electrics Type 24V
Battery 165Ah Maintenance-free battery
Cab Type SHACMAN F3000 Medium-length flat cab
Equipment Hydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free Battery, SHACMAN logo, full English logo.

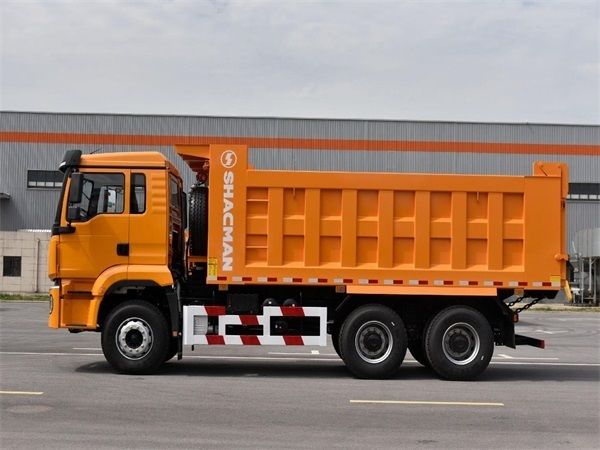

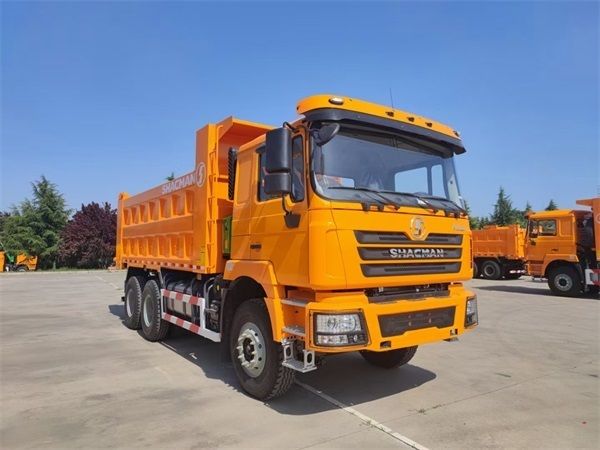

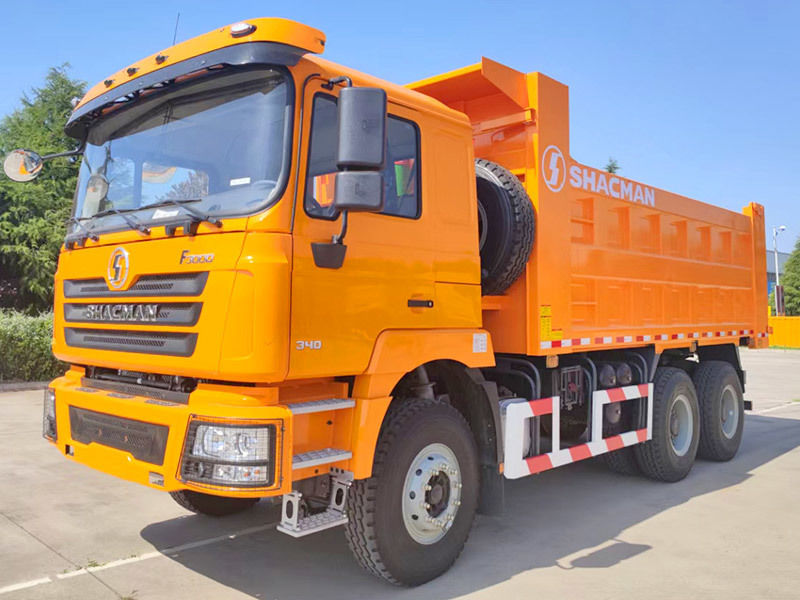

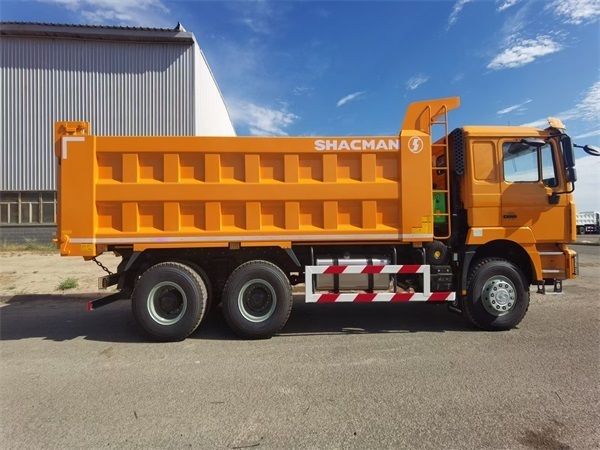

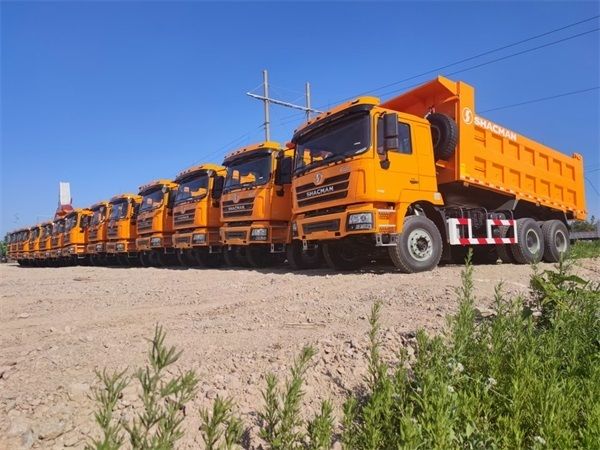

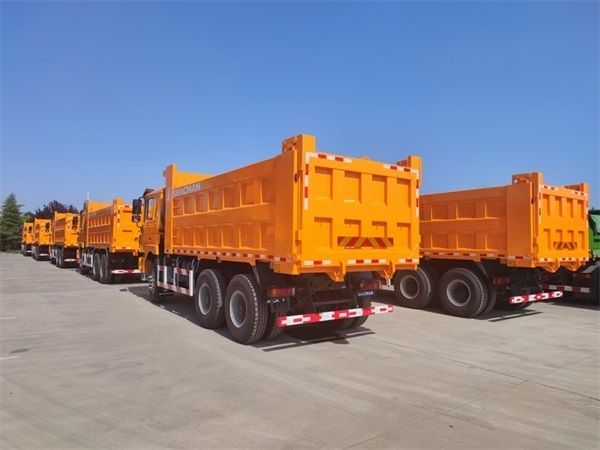

Detailed Image

SHACMAN F3000 Dump Truck 8x4 380Hp EuroII Yellow domestic Front lift Tipper 0







































About SHACMAN Trucks

  • Headquartered in Xi'an, Shaanxi Province, the company was formerly known as Shaanxi Automobile Manufacturing Plant, which was established in 1968. It is the main R&D and production base of heavy military vehicles in China, a large-scale full-series commercial vehicle manufacturer, and the first batch of the export base of complete vehicles and parts in China, with 25,400 employees and total assets of 73.1 billion.
  • The F3000 series benefits from the technological expertise of MAN, a globally renowned commercial vehicle manufacturer. Leveraging this collaboration, SHACMAN has integrated top-tier innovations into the F3000 series, resulting in trucks that boast both reliability and advanced features.
